IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel

Ask Lasest Price
Brand Name :	LEEHO
Model Number :	LH-60
Certification :	IEC61215/IEC61730/TUV/CQC/ISO
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	2000
Delivery Time :	5-8working days

Add to Cart

Product Details
Company Profile

IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel

Poly Crystalline Solar Panel Polycrystalline Pv Solar Panel Polycrystalline Solar Cells

Polycrystalline solar panels are also referred to as “multi-crystalline,” or many-crystal silicon. Because there are many crystals in each cell, there is to less freedom for the electrons to move. As a result, polycrystalline solar panels have lower efficiency ratings than monocrystalline panels.

Model	LH340P-72	LH345P-72	LH350P-72	LH355P-72	LH360P-72
Rated Maximum Power at STC	340W	345W	350W	355W	360W
Open Circuit Voltage(Voc)	46.39	46.68	46.97	47.26	47.55
Maximum Power Voltage(Vmp)	37.74	38.04	38.34	38.64	38.93
Short Circuit Current(Isc)	9.48	9.55	9.62	9.69	9.76
Maximum Power Current(Imp)	9.01	9.07	9.13	9.19	9.25
Module Efficiency(%)	17.5	17.8	18.0	18.3	18.6
Standard Test Condition(STC)	Irradiance 1000w/m2, Cell Temperature 25°C, Air Mass 1.5

ELECTRICAL DATA(NMOT)
Maximum Power-PMAX (Wp)	252	256	260	264	268
Maximum Power Voltage(VMPP)	35.81	36.03	36.25	36.47	36.69
Maximum Power Current(Imp)	7.04	7.11	7.18	7.25	7.32
Open Circuit Voltage-VOC (V)	43.96	44.16	44.36	44.56	4.76
Short Circuit Current-ISC (A)	7.55	7.62	7.69	7.76	7.83
NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s.

Detail

IEC 61730 Polycrystalline Solar Panel , 60 Cells Polycrystalline PV Solar Panel

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Solar Cell

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

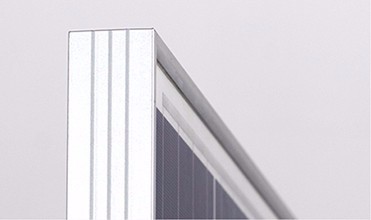

Frame

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

Junction box

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
