    Home Use Polycrystalline Solar Panel 435W 440W 445W 450W 455W

    Ask Lasest Price
    Brand Name : LH
    Model Number : LI
    Certification : IEC61215/IEC61730/TUV/CQC/ISO
    • Product Details
    • Company Profile

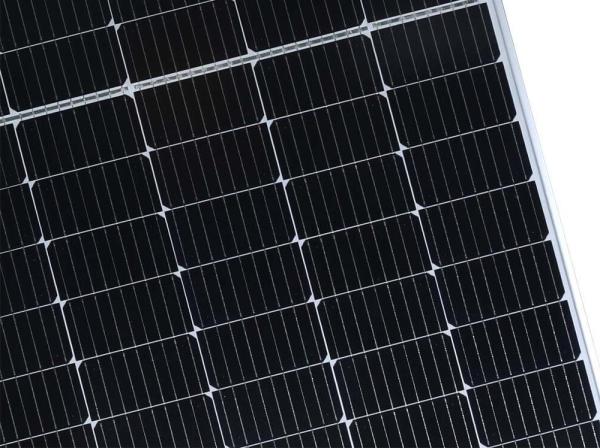

    Home Use Polycrystalline Solar Panel 435W 440W 445W 450W 455W

    435w/440w/445w/450w/455w photovoltaic solar panels solar panel for home use

    Features:

    • Excellent module efficiency up to: 21.50%
    • IP68 junction box for long-term weather endurance
    • Heavy snow load up to 5400Pa, wind load up to 3600Pa
    • PID: Selected material and stringent quality system ensure PID free
    • Applicable to harsh environment of deserts, farmlands and seasides
    • Much lower risk of Hot Spot

    WARRANTY

    From the 2nd year to the 30th year,the average annual power decline will be no more than 0.5%.

    Linear power output warranty

    -12 years minimum 92% power output

    -30 years minimum 83% power output

    Product warranty on materials and workmanship According to the applicable rise Warranty Statement


    ELECTRICAL SPECIFICATIONUnitLH-435MHLH-440MHLH-445MHLH-450MHLH-455MH
    Maximum Power (Pmax)W435440445450455
    Module Efficiency%2020.220.520.720.9
    Open Circuit Voltage (Voc)V48.748.949.149.349.5
    Short Circuit Current (Isc)A11.3911.4611.5311.611.66
    Maximum Power Voltage (Vmp)V40.8941.141.3 041.541.7
    Maximum Power Current (Imp)A10.6410.7110.7710.8410.91
    Maximum System VoltageVICE 1500VDC/UL1500(VDC)
    Maximum Series Fuse RatingA20

    ELECTRICAL DATA@NOCTLH-435MHLH-440MHLH-445MHLH-450MHLH-455MH
    Pmax[W]324.9328.6332.3336.1339.8
    Vmp[V]38.138.338.538.638.8
    Imp [A]8.538.598.648.78.75
    Voc[V]45.745.84646.246.4
    lsc[A]9.219.279.339.389.43

    MECHANICAL SPECIFICATIONS
    Solar Cell TypeMono Crystalline
    Number of Cells144pcs(24x6)
    Module Size2115*1052*35mm
    Weight24kg
    Glass3.2mm tempered glass
    Back SheetWhite or Black
    FrameAnodized aluminum alloy .silver or black
    Junction BoxIP68
    Quantity of Diodes3 pcs
    Cable4.0mm2 1100mm
    ConnectorMC4 Compatible
    Wind/Snow Load3600pa/5400pa

    PACKAGING CONFIGURATION

    Modules per box:30 pieces
    Number per 20GP:275 pieces
    Modules per 40’ HQ:660 pieces
