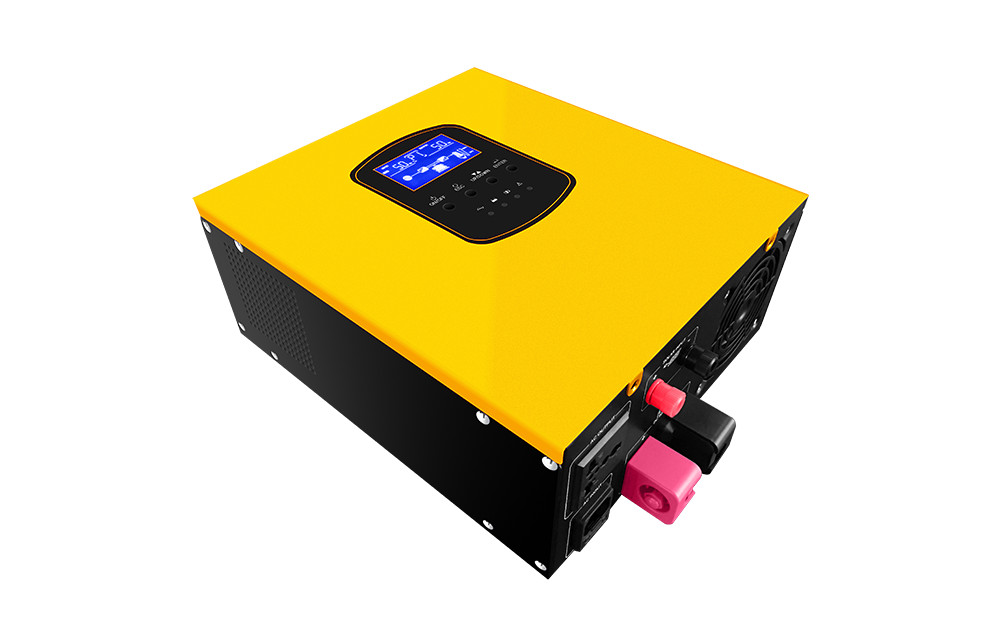

| Smart Inverter LHE series |
| Features: | |
| Pure sine ware output |
| Powerful Charge Rate Up to 90AMP |
| Optional PWM solar charge controller 30A |
| DC Start & Automatic Self-Diagnostic Function |
| High Efficiency Design & ”Power Saving Mode” to Conserve Energy |
| Auto restart when Ac in recovering |
| Smart battery charger design for optimized battery performance |
| Selectable charging current based on applications |

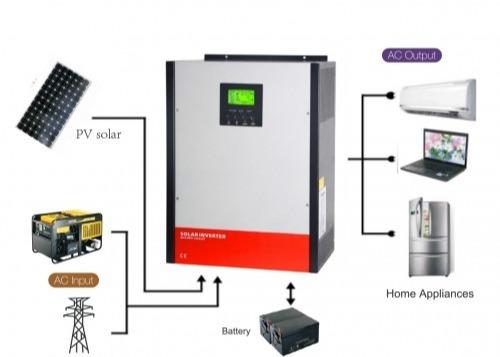

| AC input/DC input/Solar input optional priority |
| Built-in Transformer |
| Wall-Mounted |
| Model | LHE0512R | LHE0812R | LHE1012R | LHE1512R | LHE1524R |
| Capacity(VA) | 500VA | 800VA | 1000VA | 1500VA | 1500VA |
| Input Voltage(DC) | 12V | 12V | 12V | 12V | 24V |
| Nominal Voltage | 220VAC(Standard) |
| Voltage Range | 154-275VAC ± 5V (Normal Mode) |
| Frequency | 50/60Hz±5% |
| Power Factor | 0.8 |
| Rated Power | 300W | 500W | 800W | 1200W | 1200W |
| Output Voltage(AC) | 220VAC±10%(With AVR function) |
| Output Frequency (AC) | The output voltage frequency under AC is the same as the input
frequency |
| Output Voltage(DC) | 220VAC±3% |
| Output Frequency (DC) | 50/60Hz±1% |
| Waveform | Pure Sine Wave |
| Battery Type | External lead acid battery or water battery |
| Battery voltage | 12VDC | 12VDC | 12VDC | 12VDC | 24VDC |
| Battery Charging Voltage | 13.75VDC | 13.75VDC | 13.75VDC | 13.75VDC | 27VDC |
| Maximum pv array power | 12V:400W
24V:800W |
| PV Input Voltage Range (PWM Controller) | 12V:PWM 15V-30VDC
24V:PWM 30V-60VDC |
| Maximum photovoltaic display open circuit voltage | 12V:PWM 30VDC
24V:PWM 60VDC |
| Maximum solar charging current | 30A |
| Maximum AC charging current | 8A | 15A | 20A | 30A | 18A |
| Battery charging voltage range | 154-275VAC ± 5V |
| Transfer Time | ≤10ms load |
| Load peak ratio | (MAX)3:1 |
| Protections | Inverter: overload protection, short circuit protection, low
voltage protection, (can be with the battery anti-back plate) |
| LCD indicator status | AC input voltage, AC input frequency, PV voltage, PV current ,
Output Voltage, Output Frequency, Battery voltage, Load current
etc. |
| Audible alarm | Low battery protection-continuous beeping |
| Low battery protection-1 second beeping |
| Overload-continuous beeping |
| Overload less than 130%-1 second beeping and shutdown the output
after 30 seconds; Overload more than 150%,shutdown the output after
300ms |
| Malfunction-continuous beeping |
| Working temperature | 0-40℃ |
| Storage temperature | —15℃~45℃ |
| Relative humidity | —10℃~90℃ Non condensing |
| Accoustic Noise(db) | >55dB |
| Dimension(L*W*H)mm | 325*263*123 |
| Weight (kg) | 6 | 7.5 | 8 | 9.2 | 9.2 |
| Packaging Dimension(L*W*H)mm | 378*317*200 |
| PackagingWeight (kg) | 6.5 | 8.5 | 9 | 10.5 | 10.5 |
