5KVA 5KW 80A Li Battery Hybrid Grid Tie Solar System

Ask Lasest Price
Brand Name :	LEEHO
Model Number :	LH-6000VA 5000W
Certification :	IEC61215/IEC61730/TUV/CQC/ISO
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

5KVA 5KW 80A Li Battery Hybrid Grid Tie Solar System

5KVA/5KW 80A LI BATTERY Hybrid Grid Tie Solar System Small Home Solar Power System

Our design developers has more than 10 years working experience in solar energy field, all design engineers are working tirelessly to perfect our products to make its always in the leading level. The core competencies are market, brand and sales channel. We are striving to build KingSun to be an international leading manufacturer of Solar terminal application products.

* Low frequency INVERTER & CONTROLLER 5KW MPPT 80A OFF GRIDE SYSTEM
NO.	Dscreption	Specification		QTY
1	* Low frequency INVERTER & CONTROLLER 5KW MPPT 80A	48v 80A / 220v	SET	1
2	LDK 440W 42V BICFACIAL	A GRADE	PCS	10
3	LI BATTERY 24V-100AH	520268230 20KGS	pc	12
4	combine box	4input 1output		1
Totally				24

DETAILS:

Name	QTY	L	W	H	CBM	weight	totally CBM	totally weight
* Low frequency INVERTER & CONTROLLER 5KW MPPT 80A	1	546	392	260	0.06	28.00	0.06	28.00
LI BATTERY 24V-100AH	12	520	268	230	0.03	20.00	0.38	240.00
LDK 440W 42V BICFACIAL	10	2200	35	1085	0.08	24.00	0.84	240.00
combine box	1	0	0	0	0.00	0.00	0.00	0.00
		TOTALLY:					1.28	508.00

SYSTEM:

5KVA 5KW 80A Li Battery Hybrid Grid Tie Solar System

INVERTER:

5KVA 5KW 80A Li Battery Hybrid Grid Tie Solar System

Smart Inverter LH series
Features: Pure sine ware output Optional MPPT/PWM solar charge controller 60A MPPT Efficiency max 98% DC Start & Automatic Self-Diagnostic Function High Efficiency Design & ”Power Saving Mode” to Conserve Energy Auto restart when Ac is recovering Smart battery charger design for optimized battery performance Selectable charging current based on applications AC input/DC input/Solar input optional priority Auto Restart Voltage
Capacity(VA)	LH1000V	LH1500VA	LH2000VA	LH3000VA	LH4000VA	LH5000VA	LH6000VA	LH7000VA	LH8000VA	LH10000VA
Rated Power	800W	1200W	1600W	2400W	3200W	4000W	5000W	5600W	6400W	8000W
Voltage(DC)	12V		24V/48V				48V
Nominal Voltage	220VAC
Voltage Range	154-265VAC ;185-264VAC ( selectable)
Frequency	50-60HZ Auto sensing
Power Factor	0.8
Voltage	220VAC
Frequency	50/60HZ
Waveform	Pure Sine Wave
Transfer Time (AC to DC)	<8ms
Transfer Time (DC to AC)	<8ms
Output Voltage Regulation	土10%
Bypass Mode	Yes
Saver Mode	Yes
Efficiency	>98%
Input Protection	Circuit Breaker
Output Protection	Circuit Breaker
Battery Type	VRLA / GEL /GEL DEEP CYCLE
Charging Current	20A	30A	20A/10A	30A/15A	40A/20A	55A/28A	30A	40A	45A	55A
Low Level disconnect (Selectable)	10V- 11V		20V -22V/40V-44V				40V -42V
PWM controller Voltage range	15VDC-33VDC		30VDC-66VDC				60VDC-150VDC
PWM Maximum PV display open circuit voltage	38V		75V				75V
Maximum PV array power	720W		1400W/2800W				3400W
MPPT control voltage range	18V-150V		34V-150V/68V-150V				60V-150V
MPPT Maximum PV display open circuit voltage	150VDC
Maximum solar charge current	60A
LCD indicator status	AC input voltage/input frequency, PV voltage, PV current , Output Voltage/Frequency, Battery voltage, Load current etc.
LED indicator status	AC Line In:Green/Inverter:Red/Charging :Yellow/Alarm :Red
LOW battery alarm	Audible alarm-5 seconds beeping
Overload alarm	Audible alarm- continuous beeping
Fault	Audible alarm- continuous beeping
Temperature	0-60℃
Humidity	—10℃~90℃ Non condensing
Accoustic Noise(db)	>55dB
Size LWH(mm)	470mm335mm210mm							720mm335mmm210mm
Weight (kg)	12	18.5	18.5	20	22	22	23	27	30	33

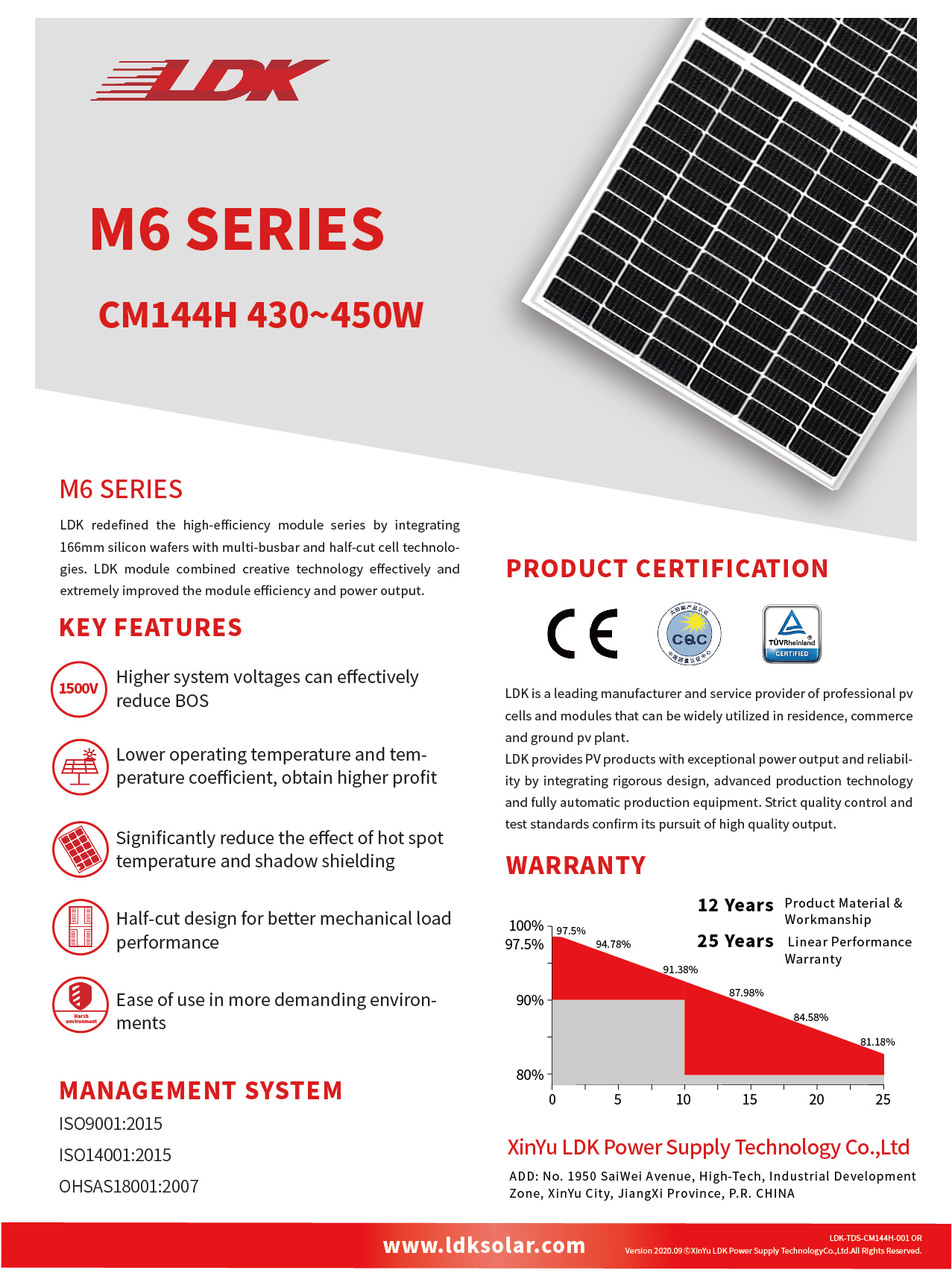

SOLAR PANEL:

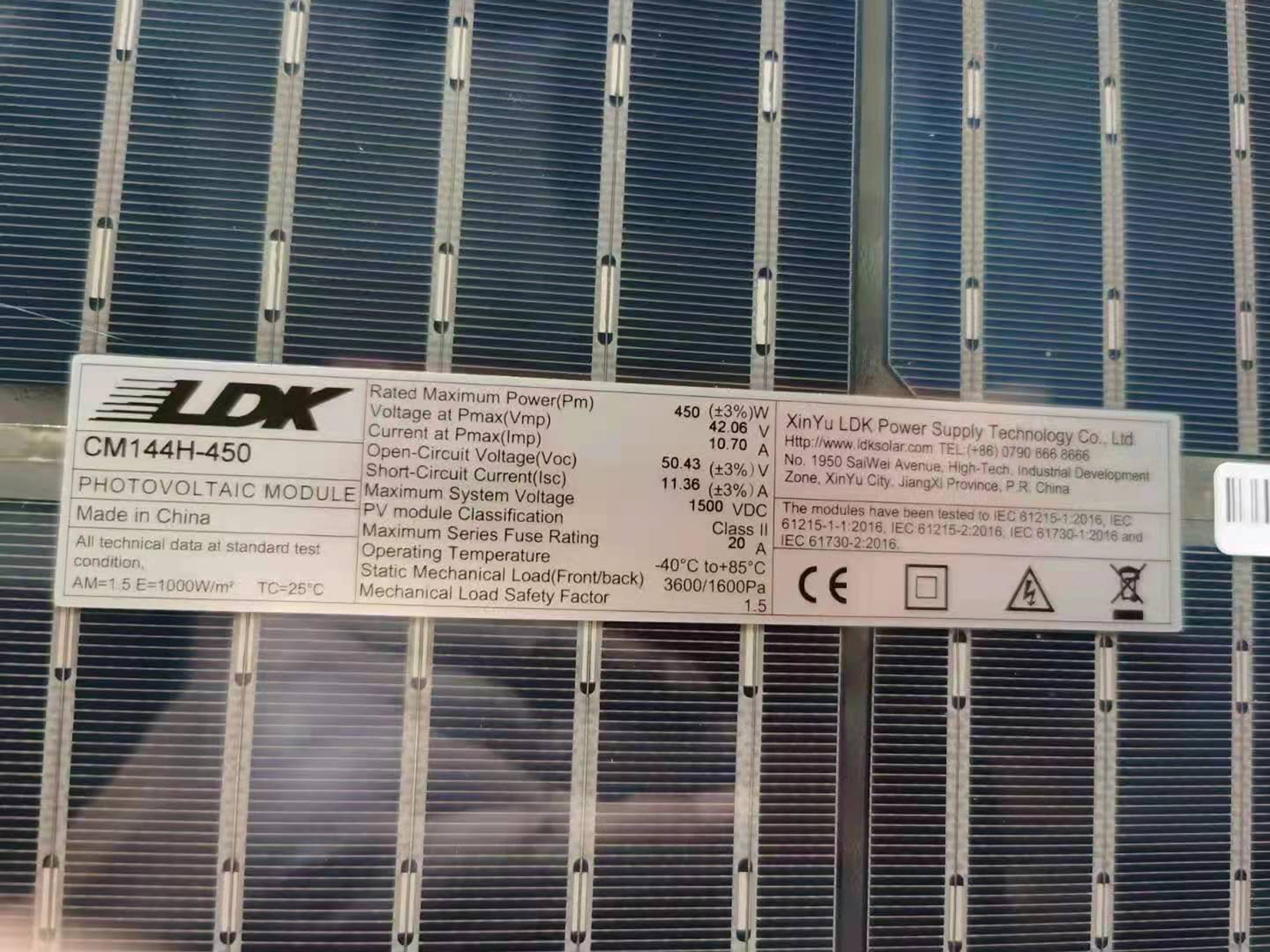

ELECTRICAL PARAMETERS@STC CM144H-430〜450
Max. Power Output Pmax (W)	430	435	440	445	450
Power Tolerance	0-3%	0 〜+3%	0-+3%	0~+3%	0 〜+3%
Max. Power Voltage Vmp (V)	41.27	41.47	41.67	41.87	42.06
Max. Power Current Imp (A)	10.42	1049	10.56	10.63	10.7
Open Circuit Voltage Voc (V)	49.65	49.85	50.05	50.26	50.43
Short Circuit Current Isc (A)	ll.O8	Il.l5	H.22	H.29	H.36
Module Efficiency (%)	19.46	19.69	19.92	20.14	20.37
STC (Standard Test Condition): Irradiance lOOOW/m² , Cell Temperature 25OC, Air Mass 1.5
ELECTRICAL PARAMETERS@NMOT
Max. Power Output Pmax (W)	323	327	331	334	338
Max. Power Voltage Vmp (V)	38.45	38.64	38.82	39.01	39.19
Max. Power Current Imp (A)	8.4	8.46	8.52	8.57	8.63
Open Circuit Voltage Voc (V)	47.19	47.38	47.57	47.77	47.93
Short Circuit Current Isc (A)	8.93	8.99	9.05	9.1	9.16

Nominal Module Operating Temperature (NMOT), Irradiance of 800W/m2, Spectrum AM 1.5, Ambient Temperature 20°C, Wind Speed Im/s
TEMPERATURE COEFFICIENTS
Temperature Coefficients of Pmp	-0.36%/°C
Temperature Coefficients of Voc	-0.29%/°C
Temperature Coefficients of Isc	+0.048%/°C
MECHANICAL PARAMETERS
Cell Type	Mono 166 X83mm
Number of Cells	I44pcs (2X (6X12))
Dimensions (L^W*H)	2l08Xl048X35mm
Weight	25kg
Frame	Anodized Aluminum
Junction Box	IP67, 3 bypass diodes
Cable, Length	4mm², 350mm

BATTERY:

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal capacity	200Ah
	Energy	2560Wh
	Internal Resistance	≤ 60mΩ
	Cycle life	≥4000 cycles @1C 80%DOD
	Months Self Discharge	<3%
	Efficiency of Charge	100% @0.5C
	Efficiency of Discharge	96~99% @1C
Charge	Standard charge current	60A
	Maximum charge current	100A
	Charge cut-off voltage	14.6v
	Charge ending current	10A
Discharge	Maximum continuous discharge current	200A
Discharge	Standard discharge current	60A
Environmental	Charge Temperature	0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
	Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
	Storage Temperature	0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
	Water Dust Resistance	IP65
Mechanical	Case	ABS
	Dimensions (mm)	520267228mm Customizable
	Weight	20kg
	Terminal	customizable
Color		Black

Warranty
FULL SETS SYSTEM	1years
Solar	12years products on materials 25years liner power performance
Inverter	1year
GEL battery	1year
LI battery	3years
GRAPHENE battery	5years
