12V 150AH Gel Solar Battery , Sealed Lead Acid Gel Battery Communication Power Supply

Ask Lasest Price
Brand Name :	LEEHO
Model Number :	GEL 12V 150AH
Certification :	IEC61215/IEC61730/TUV/CQC/ISO
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	6000 Piece/Pieces per Month

Add to Cart

Product Details
Company Profile

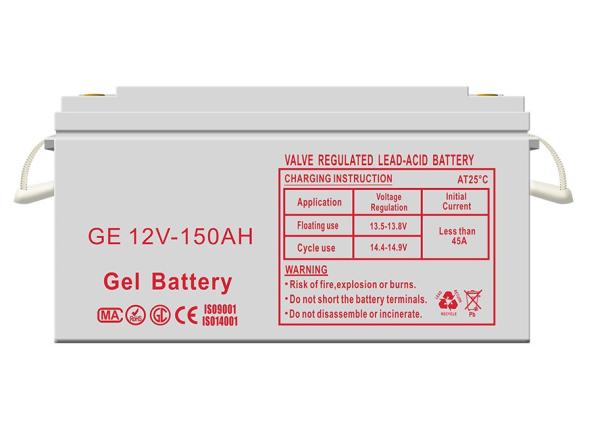

12V 150AH Gel Solar Battery , Sealed Lead Acid Gel Battery Communication Power Supply

12V 150AH Solar Gel Battery Communication Power Supply Sealed Lead Acid Gel Battery

Nominal Voltage	12V
Nominal Capacity(10HR)	150AH
Dimension	Length	484 ±3mm (19.06 inches)
	Width	170 ±2mm (6.69 inches)
	Container Height	242 ±2mm (9.53 inches)
	Total Height (withTerminal)	247 ±2mm (9.72 inches)
Approx Weight	Approx 41 Kg (90.39Ibs)
Terminal	T11
Container Material	ABS
Rated Capacity	160.8 AH/8.04A	(20hr ,1.80V/cell,25℃/77℉)
	150.0 AH/15.0A	(10hr,1.80V/cell,25℃/77℉)
	131.6 AH/26.3A	(5hr,1.75V/cell,25℃/77℉)
	119.3 AH/39.8A	(3hr,1.75V/cell,25℃/77℉)
	96.9 AH/96.9A	(1hr,1.60V/cell,25℃/77℉)
Max. Discharge Current	1500A (5s)
Internal Resistance	Approx 2.7mΩ
Operating Temp.Range	Discharge : -30~50℃ (5~122℉)
	Charge : 0~40℃ (32~104℉)
	Aircraft signal Storage : -30~40℃ (5~104℉)
Nominal Operating Temp. Range	25 ±3℃ (77 ±5℉ )
Cycle Use	Initial Charging Current less than 45 A.Voltage Communication power supply 14.4V~15.0V at 25℃(77℉)Temp. Coefficient -30mV/℃
Standby Use	No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃
Capacity affectedby Temperature	40℃ (104 ℉)103%
	25℃ ( 77 ℉ )100%
	0℃ ( 32℉ ) 86%
Self Discharge	GEL series batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher temperatures the time interval will be shorter.

FEATURES:

· low resistance characteristics and high efficiency

· low self-discharge, strong recovery ability, adaptable temperature: -20℃-60℃
· Leadingot purity reaches 99.9%
· Anti-fall, anti-corrosion, strong resistance to pressure

Safety Valve:With up-dated AGM valve regulated technologyTerminal:Good Electrical conductivity,Good anti-corrosion

Through-wall welding thechnology:Advanced pole-group welding,
casting and through-wall welding technology;

Plate:The raw material is lead ingot with purity up to 99.9%

Container:Battery cabinets are applied ABS material.

Our Advantages

The raw material is LEAD ingot with purity up to 99.9%:1.Durable;
2.multiple times of cycle;
3.10years design life.

Patented formula:1.1 year storage ;
3.Strong recovery ability;

2.Low self-discharge;4.Adaptable temperature: -20℃-60℃

Automatic equipment production:

1.Standardizied quality;2.High efficiency production;
3.7 days delivery.

Solar/wind energy photovoltaic system

Armamentarium

Electrocar

Monitoring system

Educational Multimedia Project

Applied range

Telecom, Internet (cloud computing/Internet of Things/Big data
center/ARTIFICIAL intelligence), Government,
banking,Manufacturing,Transportation, health care, education,
wholesale and retail, petroleum and petrochemical, electricity,
securities and other finance, insurance,Logistics, households and
individuals, coal and other energy, research, others...

20 Years industrial experience with three production bases in China & Malaysia. Owns advanced equipment and instruments and builds Automatic production line.
