12V 250AH Deep Cycle Solar Battery , Fusion Deep Cycle Battery

Ask Lasest Price
Brand Name :	LEEHO
Model Number :	DEEP CYCLE 12V 250AH
Certification :	IEC61215/IEC61730/TUV/CQC/ISO
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	6000 Piece/Pieces per Month

Add to Cart

Product Details
Company Profile

12V 250AH Deep Cycle Solar Battery , Fusion Deep Cycle Battery

12V 250AH Small Deep Cycle Marine Battery Fusion Deep Cycle Battery Discharge Batteries

Features:

· low resistance characteristics and high efficiency

· low self-discharge, strong recovery ability, adaptable temperature: -20℃-60℃

· Leadingot purity reaches 99.9%

· Anti-fall, anti-corrosion, strong resistance to pressure

Product Paramenters:

Nominal Voltage	12V
Nominal Capacity(10HR)	250AH

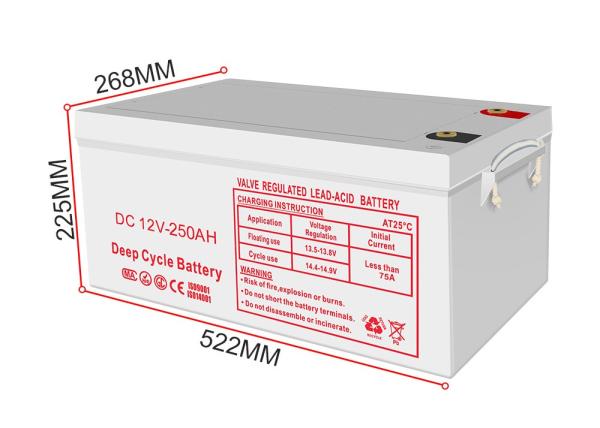

Dimension	Length	522 ±3mm (20.55 inches)
	Width	268 ±2mm (10.55 inches)
	Container Height	220 ±2mm (8.66inches)
	Total Height (withTerminal)	225 ±2mm (8.86 inches)
Approx Weight	Approx 64.0 Kg (141.1Ibs)
Terminal	T11
Container Material	ABS
Rated Capacity	258.8AH/1 2.9A	(20hr ,1.80V/cell,25℃/77℉)
	250.0 AH/25.0A	(10hr,1.80V/cell,25℃/77℉)
	218.7 AH/43.7A	(5hr,1.75V/cell,25℃/77℉)
	198.7 AH/66.2A	(3hr,1.75V/cell,25℃/77℉)
	161.5 AH/161.5A	(1hr,1.60V/cell,25℃/77℉)
Max. Discharge Current	2000A (5s)
Internal Resistance	Approx 2.0mΩ
Operating Temp.Range	Discharge : -15~50℃ (5~122℉)
	Charge : 0~40℃ (32~104℉)
	Aircraft signal Storage : -15~40℃ (5~104℉)
Nominal Operating Temp. Range	25 ±3℃ (77 ±5℉ )
Cycle Use	Initial Charging Current less than 75.0A.Voltage Communication power supply 14.4V~14.9V at 25℃(77℉)Temp. Coefficient -30mV/℃
Standby Use	No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃
Capacity affectedby Temperature	40℃ (104 ℉)103%
	25℃ ( 77 ℉ )100%
	0℃ ( 32℉ ) 86%
Self Discharge	batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher
	temperatures the time interval will be shorter.

Safety Valve:With up-dated AGM valve regulated technologyTerminal:Good Electrical conductivity,Good anti-corrosion

Through-wall welding thechnology:Advanced pole-group welding,
casting and through-wall welding technology;

Plate:The raw material is lead ingot with purity up to 99.9%

Container:Battery cabinets are applied ABS material.

Our Advantages

The raw material is LEAD ingot with purity up to 99.9%:1.Durable;
2.multiple times of cycle;
3.10years design life.

Patented formula:1.1 year storage ;
3.Strong recovery ability;

2.Low self-discharge;4.Adaptable temperature: -20℃-60℃

Automatic equipment production:

1.Standardizied quality;2.High efficiency production;
3.7 days delivery.

Application

Solar/wind energy photovoltaic system

Armamentarium

Electrocar

Monitoring system

Educational Multimedia Project

Applied range

Telecom, Internet (cloud computing/Internet of Things/Big data
center/ARTIFICIAL intelligence), Government,
banking,Manufacturing,Transportation, health care, education,
wholesale and retail, petroleum and petrochemical, electricity,
securities and other finance, insurance,Logistics, households and
individuals, coal and other energy, research, others...

20 Years industrial experience with three production bases in China & Malaysia. Owns advanced equipment and instruments and builds Automatic production line.
