10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

Ask Lasest Price
Brand Name :	LEEHO
Model Number :	LH-10000VA 8000W
Certification :	IEC61215/IEC61730/TUV/CQC/ISO
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

10KVA/8KW 60A LOW FREQUENCY PURE SINE WAVE OFF GRIDE MPPT solar power system for home GEL BATTERY

Off grid solar power systems, or in other words off grid solar kits, are not connected to utility company. They cannot take or feed power back into the grid. They keep the energy produced by the solar system into the battery bank.

NO.	Dscreption	Specification		QTY
0730	* Low frequency INVERTER & CONTROLLER 8KW	48v 60A / 220v	SET	1
0691	LDK 440W 42V BICFACIAL	A GRADE	PCS	18
0668	* 12v200ah	530248265	pc	12
	combine box	4input 1output		1
Totally				32

DETAILS:

Name	QTY	L	W	H	CBM	weight	totally CBM	totally weight
Low frequency INVERTER & CONTROLLER 8KW	1	720	335	210	0.05	29.00	0.05	29.00
12v200ah	12	530	248	265	0.03	60.30	0.42	723.60
LDK 440W 42V BICFACIAL	18	2200	35	1085	0.08	24.00	1.50	432.00
		TOTALLY:					1.97	1184.60

SYSTEM:

10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

INVERTER:

10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

Smart Inverter LH series
Features: Pure sine ware output Optional MPPT/PWM solar charge controller 60A MPPT Efficiency max 98% DC Start & Automatic Self-Diagnostic Function High Efficiency Design & ”Power Saving Mode” to Conserve Energy Auto restart when Ac is recovering Smart battery charger design for optimized battery performance Selectable charging current based on applications AC input/DC input/Solar input optional priority Auto Restart Voltage
Capacity(VA)	LH1000V	LH1500VA	LH2000VA	LH3000VA	LH4000VA	LH5000VA	LH6000VA	LH7000VA	LH8000VA	LH10000VA
Rated Power	800W	1200W	1600W	2400W	3200W	4000W	5000W	5600W	6400W	8000W
Voltage(DC)	12V		24V/48V				48V
Nominal Voltage	220VAC
Voltage Range	154-265VAC ;185-264VAC ( selectable)
Frequency	50-60HZ Auto sensing
Power Factor	0.8
Voltage	220VAC
Frequency	50/60HZ
Waveform	Pure Sine Wave
Transfer Time (AC to DC)	<8ms
Transfer Time (DC to AC)	<8ms
Output Voltage Regulation	土10%
Bypass Mode	Yes
Saver Mode	Yes
Efficiency	>98%
Input Protection	Circuit Breaker
Output Protection	Circuit Breaker
Battery Type	VRLA / GEL /GEL DEEP CYCLE
Charging Current	20A	30A	20A/10A	30A/15A	40A/20A	55A/28A	30A	40A	45A	55A
Low Level disconnect (Selectable)	10V- 11V		20V -22V/40V-44V				40V -42V
PWM controller Voltage range	15VDC-33VDC		30VDC-66VDC				60VDC-150VDC
PWM Maximum PV display open circuit voltage	38V		75V				75V
Maximum PV array power	720W		1400W/2800W				3400W
MPPT control voltage range	18V-150V		34V-150V/68V-150V				60V-150V
MPPT Maximum PV display open circuit voltage	150VDC
Maximum solar charge current	60A
LCD indicator status	AC input voltage/input frequency, PV voltage, PV current , Output Voltage/Frequency, Battery voltage, Load current etc.
LED indicator status	AC Line In:Green/Inverter:Red/Charging :Yellow/Alarm :Red
LOW battery alarm	Audible alarm-5 seconds beeping
Overload alarm	Audible alarm- continuous beeping
Fault	Audible alarm- continuous beeping
Temperature	0-60℃
Humidity	—10℃~90℃ Non condensing
Accoustic Noise(db)	>55dB
Size LWH(mm)	470mm335mm210mm							720mm335mmm210mm
Weight (kg)	12	18.5	18.5	20	22	22	23	27	30	33

SOLAR PANEL:

10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

ELECTRICAL PARAMETERS@STC CM144H-430〜450
Max. Power Output Pmax (W)	430	435	440	445	450
Power Tolerance	0-3%	0 〜+3%	0-+3%	0~+3%	0 〜+3%
Max. Power Voltage Vmp (V)	41.27	41.47	41.67	41.87	42.06
Max. Power Current Imp (A)	10.42	1049	10.56	10.63	10.7
Open Circuit Voltage Voc (V)	49.65	49.85	50.05	50.26	50.43
Short Circuit Current Isc (A)	ll.O8	Il.l5	H.22	H.29	H.36
Module Efficiency (%)	19.46	19.69	19.92	20.14	20.37
STC (Standard Test Condition): Irradiance lOOOW/m² , Cell Temperature 25OC, Air Mass 1.5
ELECTRICAL PARAMETERS@NMOT
Max. Power Output Pmax (W)	323	327	331	334	338
Max. Power Voltage Vmp (V)	38.45	38.64	38.82	39.01	39.19
Max. Power Current Imp (A)	8.4	8.46	8.52	8.57	8.63
Open Circuit Voltage Voc (V)	47.19	47.38	47.57	47.77	47.93
Short Circuit Current Isc (A)	8.93	8.99	9.05	9.1	9.16

Nominal Module Operating Temperature (NMOT), Irradiance of 800W/m2, Spectrum AM 1.5, Ambient Temperature 20°C, Wind Speed Im/s
TEMPERATURE COEFFICIENTS
Temperature Coefficients of Pmp	-0.36%/°C
Temperature Coefficients of Voc	-0.29%/°C
Temperature Coefficients of Isc	+0.048%/°C
MECHANICAL PARAMETERS
Cell Type	Mono 166 X83mm
Number of Cells	I44pcs (2X (6X12))
Dimensions (L^W*H)	2l08Xl048X35mm
Weight	25kg
Frame	Anodized Aluminum
Junction Box	IP67, 3 bypass diodes
Cable, Length	4mm², 350mm

10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

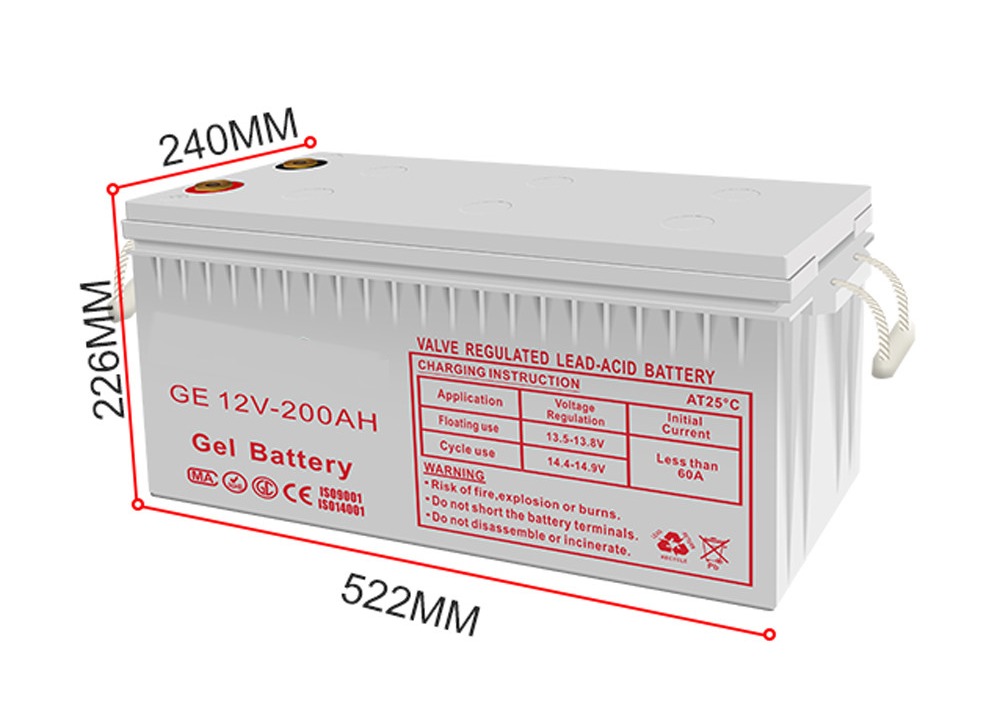

BATTERY:

10KVA 8KW 60A Off Grid Home Solar Power System Low Frequency Pure Sine Wave

Product Paramenters

Nominal Voltage	12V
Nominal Capacity (10HR)	200AH
Dimension	Length	522 ±3mm (20.55 inches)
	Width	240 ±2mm (9.45 inches)
	Container Height	221 ±2mm (8.70 inches)
	Total Height (withTerminal)	226 ±2mm (8.89 inches)
Approx Weight	Approx 55.0 kg (121lbs)
Terminal	T11
Container Material	ABS
Rated Capacity	209.1 AH/10.4A	(20hr ,1.80V/cell,25℃/77℉)
	200.0 AH/20.0A	(10hr,1.80V/cell,25℃/77℉)
	173.0 A H/34.6A	(5hr,1.75V/cell,25℃/77℉)
	157.2 AH/52.4A	(3hr,1.75V/cell,25℃/77℉)
	122.8 AH/122.8A	(1hr,1.60V/cell,25℃/77℉)
Max. Discharge Current	1800A (5s)
Internal Resistance	Approx 3.4mΩ
Operating Temp.Range	Discharge : -30~50℃ (5~122℉)
	Charge : 0~40℃ (32~104℉)
	Aircraft signal Storage : -30~40℃ (5~104℉)
Nominal Operating Temp. Range	25 ±3℃ (77 ±5℉ )
Cycle Use	Initial Charging Current less than 60.0A.Voltage Communication power supply 14.4V~15.0V at 25℃(77℉)Temp. Coefficient -30mV/℃
Standby Use	No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃
Capacity affectedby Temperature	40℃ (104 ℉)103%
	25℃ ( 77 ℉ )100%
	0℃ ( 32℉ ) 86%
Self Discharge	GEL series batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher temperatures the time interval will be shorter.

Warranty
FULL SETS SYSTEM	1years
Solar	12years products on materials 25years liner power performance
Inverter	1year
GEL battery	1year
LI battery	3years
GRAPHENE battery	5years
